Details
Rule the road.
- 6061 alloy frame
- Shimano 14 speed drivetrain
- Shimano thumb shifters
- Drop anatomic handlebars
- Pedals w/ clips & straps

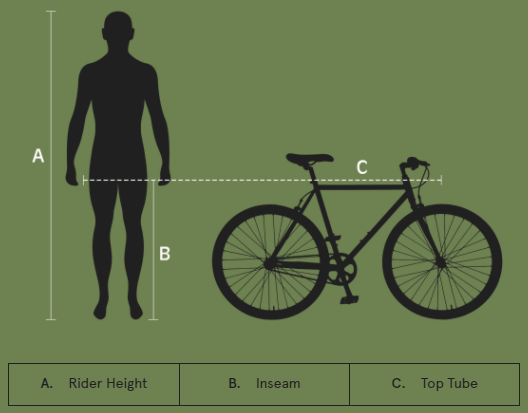

Size | Height Range | Standover Height |
---|---|---|
45cm - X-Small | 4'9"-5'1" | 30.5" |
50cm - Small | 5'2"-5'5" | 31" |
54cm - Medium | 5'6"-5'8" | 32.5" |
58cm - Large | 5'9"-5'11" | 34" |
Specs
Frame | 6061 alloy classic road ‘double-diamond’ frame, 2 sets water bottle braze-ons Rear rack braze-ons Double rear dropout eyelets Decals protected by clear-coat |
---|---|
Rims | Retrospec aluminum double-wall 32H, 30mm apex section, precision machined brake tracks with wear indicator |
Hubs | Aluminum, ball-bearing, 32H, QR Front/100mm & Rear/135mm |
Spokes | 14G stainless steel |
Tires | Retrospec 700 x 28C all-season, P/V valves |
Bottom Bracket | Sealed Cartridge 68 x 116mm |
Crankset | Prowheel Alloy 3-piece cranks 2 x 7 - 170mm x 34/50T |
Shifters | Shimano A050 handlebar mounted thumb shifters |
Front Derailleur | Shimano Z500 |
Rear Derailleur | Shimano Tourney A070 |
Cassette/Freewheel | Shimano Z500 14-28T, 7S |
Chain | KMC Z-series 1/2 x 3/32" |
Brakes | Aluminum alloy dual-pivot side-pull calipers & aluminum brake levers |
Handlebars | Alloy Drop Anatomic - 420mm width 25.4mm clamp |
Tape/Grips | Retrospec Road Rap |
Stem | Aluminum alloy Threadless 1 1/8"-ext.90mm x -10d |
Headset | 1 1/8" (28.6mm) steel, Threadless |
Seatpost | Alloy 27.2mm x 350mm w/integrated seat clamp |
Saddle | Retrospec Road |
Pedals | Alloy/Nylon: High Impact, Reinforced Nylon Resin body, Alloy cage, w/toe-clips & straps, 9/16" |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black / 50cm | 810015706374 | 3955 | 210000000441 |
Black / 54cm | 810015706381 | 3956 | 210000000439 |
Coastal Blue / 45cm | 810015706404 | 3958 | 210000000445 |
Coastal Blue / 58cm | 810015706435 | 3961 | 210000000969 |
