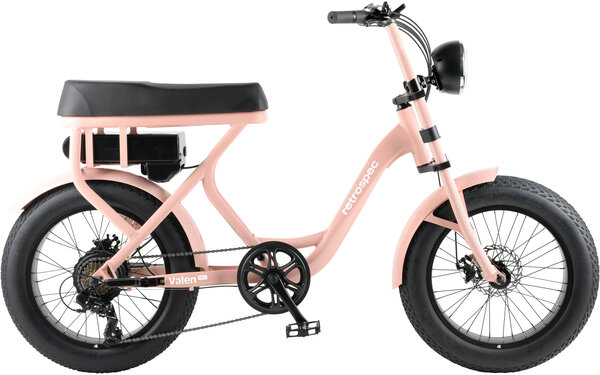

Retrospec Valen Rev 750 - Step Thru

Retrospec Valen Rev 750 - Step Thru
  • Color: Blush
  • Color: Crystal Blue
$1,899.99
Color:
Crystal Blue
Size:
One Size
Please select options

Details

Valen Rev is the ultimate moto-style electric bike for the everyday rider. With a powerful 48v/750W motor, 15.6Ah Lithium Battery, 6 levels of pedal assist and a 55 mile range, you'll tap into the exhilaration of wind-in-your-face riding.

Sizing

Sizes:
SizeHeight RangeStandover Height
20" 5'-6'4"+ 31"

Specs

Frame Alloy 6061, TIG welded (1 size - 20")
Fork Steel triple-clamp style (w/integrated handlebar), 28.6mm steerer
Rims Alloy 20" x 4.0 Fat, 36H x 13G, single-wall
Hubs Front: Alloy bolt-on
Rear: Hub motor bolt-on, 36H x 13G
Spokes 13G w/brass nipples, black ED finish
Tires 20 x 4.0, S/V Kenda
Bottom Bracket Crmo spindle sealed cartridge, 100 x 170mm
Crankset Alloy 3-piece 152mm x 48T, alum arms, steel chainring
Shifters Shimano Tourney Thumb Shifter (push/pull) 7S, SL-TX50-7R
Rear Derailleur Shimano Tourney 7S, RD-TX35
Cassette/Freewheel Shimano 7-speed 14-28 (14-16-18-20-22-24-28)
Chain KMC Z-series 1/2 x 3/32"
Brakes JAX Mechanical disc Front & Rear, 160mm
Handlebars 650mmW, Integrated w/fork
Tape/Grips Moto w/right side twist throttle
Stem Integrated w/fork
Headset Threaded, steel, 1 1/8" (28.6mm)
Saddle Moto-style SuperSoft Dims: Length: 570mm, Width: 110mm/front - 180mm/rear, Height: 70mm/front - 100mm/Rear
Pedals Alloy Platform
Accessories & Extras Kickstand: Alloy chainstay mount
Lights: Front + Rear powered by Valen lithium-ion battery charging system
Fenders: Steel w/steel stays
Chainring cover
Bottle Cage: Alum Alloy
Tools: 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
Motor 48V/750W Motor: Brushless rear hub motor, 9-pin connector, MXUS
Battery 48V/750W Battery: Li-ion + Charger w/US plug, w/power level display. Tianjin Xianzhong New Energy Technology Co., Ltd
Controller/Display Controller: Yelchm Technology
Display: PAS/twist throttle Right side FT158X twist throttle, speed sensor, LCD display panel w/6 PAS levels (Pedal Assist System), w/Start-Aid 6kph (~4mph)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Crystal Blue / One Size 840216303355 4564 210000001173
